************* Out of Stock - parts only ******
Macma CSB315 Site Saw (3270554)

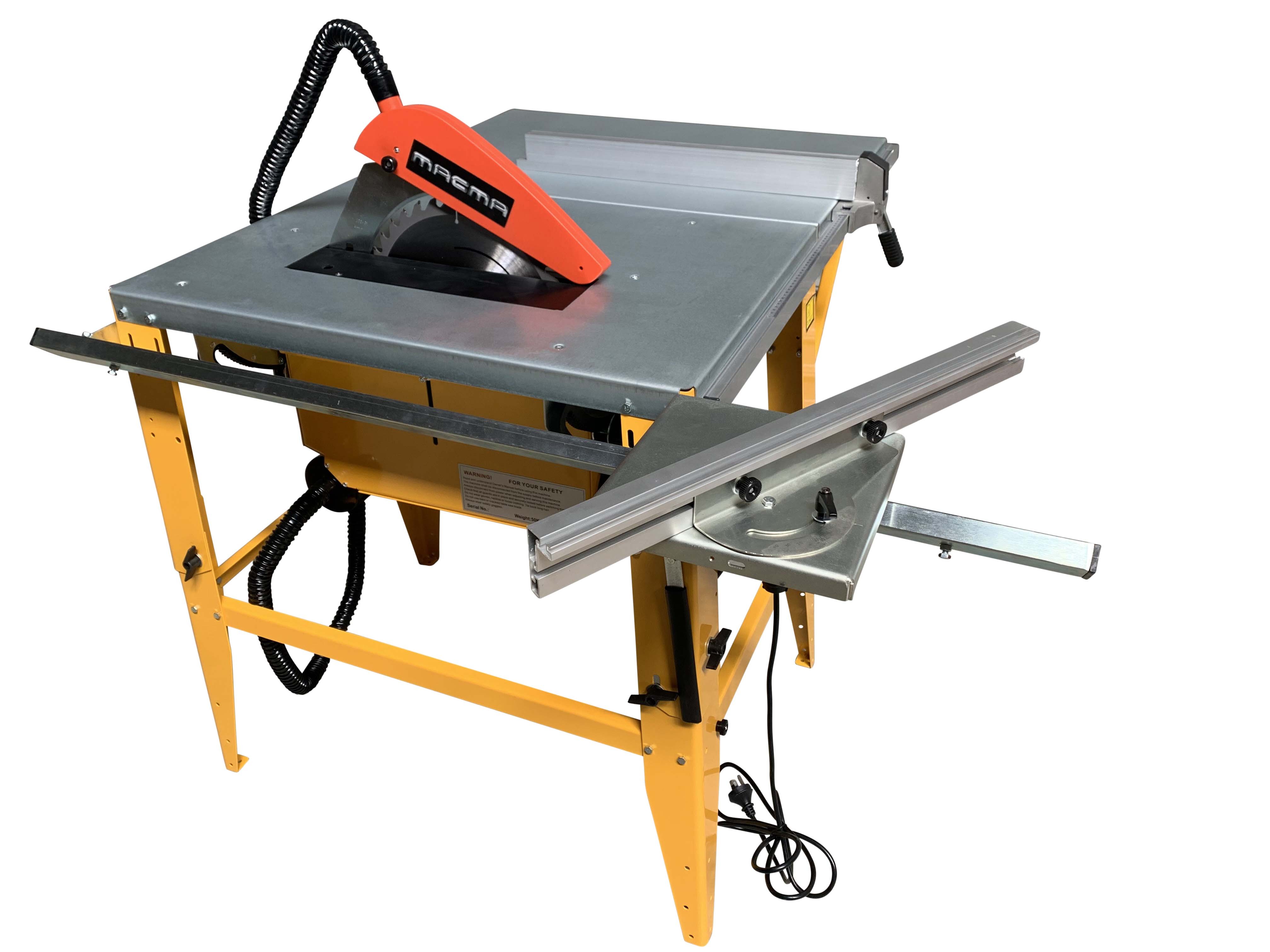

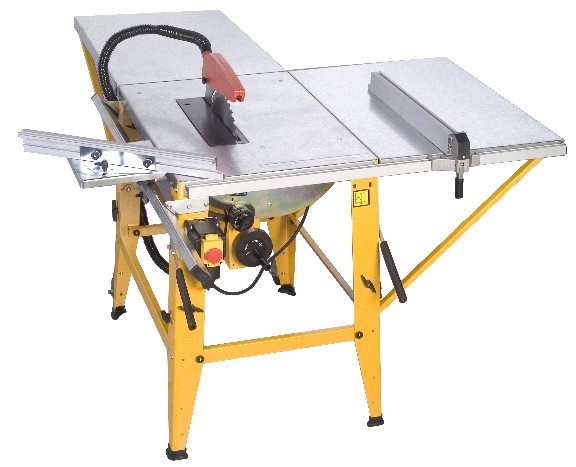

Macma CSB315 315mm Dia. Heavy Duty Tilt Arbor Circular Saw-bench
Portable; versatile; outstanding performance; rigid; and accurate. These saw benches represent amazing value for money. Their generous specification fulfills the need for ripping, crosscutting, angle and compound angle cuts.
This circular saw-bench is the ideal choice for both tradesman and ambitious home workshop use. The Macma CSB315 is the perfect saw bench or workshop use where substantial depth of cut and budget are of equal consideration. Ideal for ripping, cross-cutting, sizing small to medium sized panels, this circular saw-bench scores high by virtue of its versatility. It meets the latest EN safety instructions and standards.

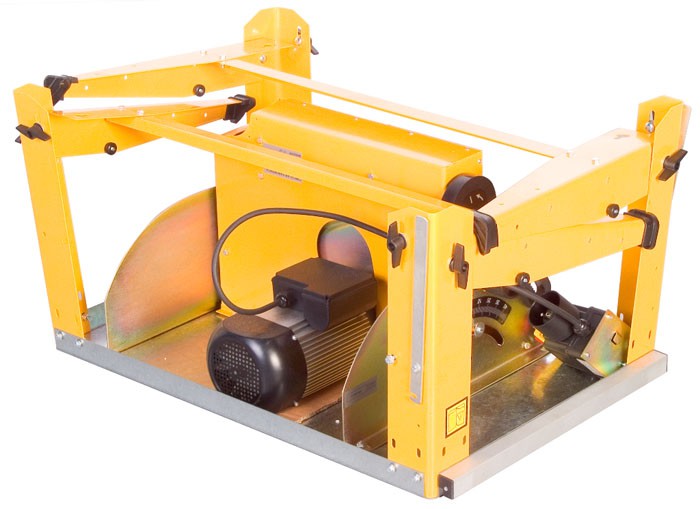

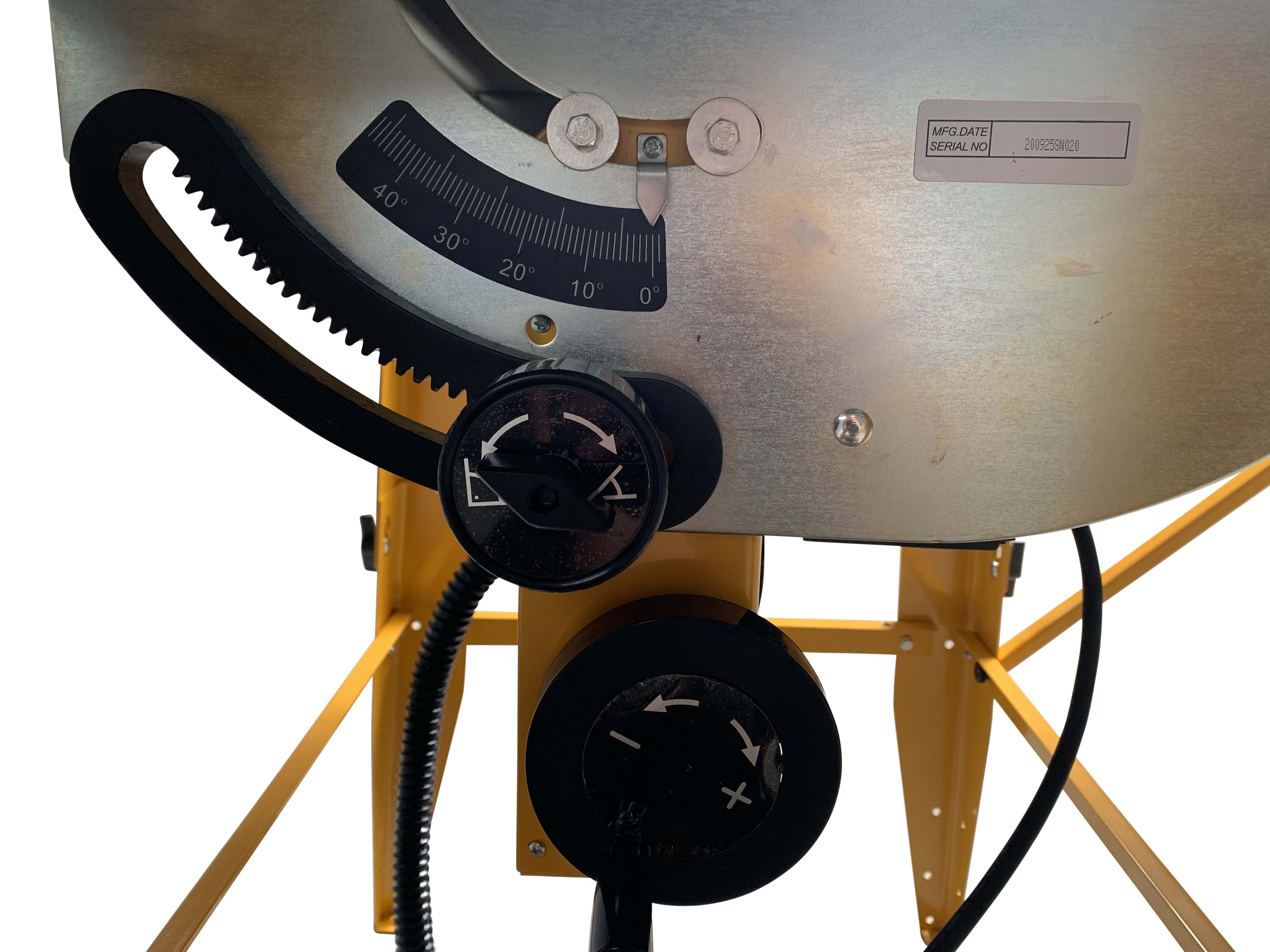

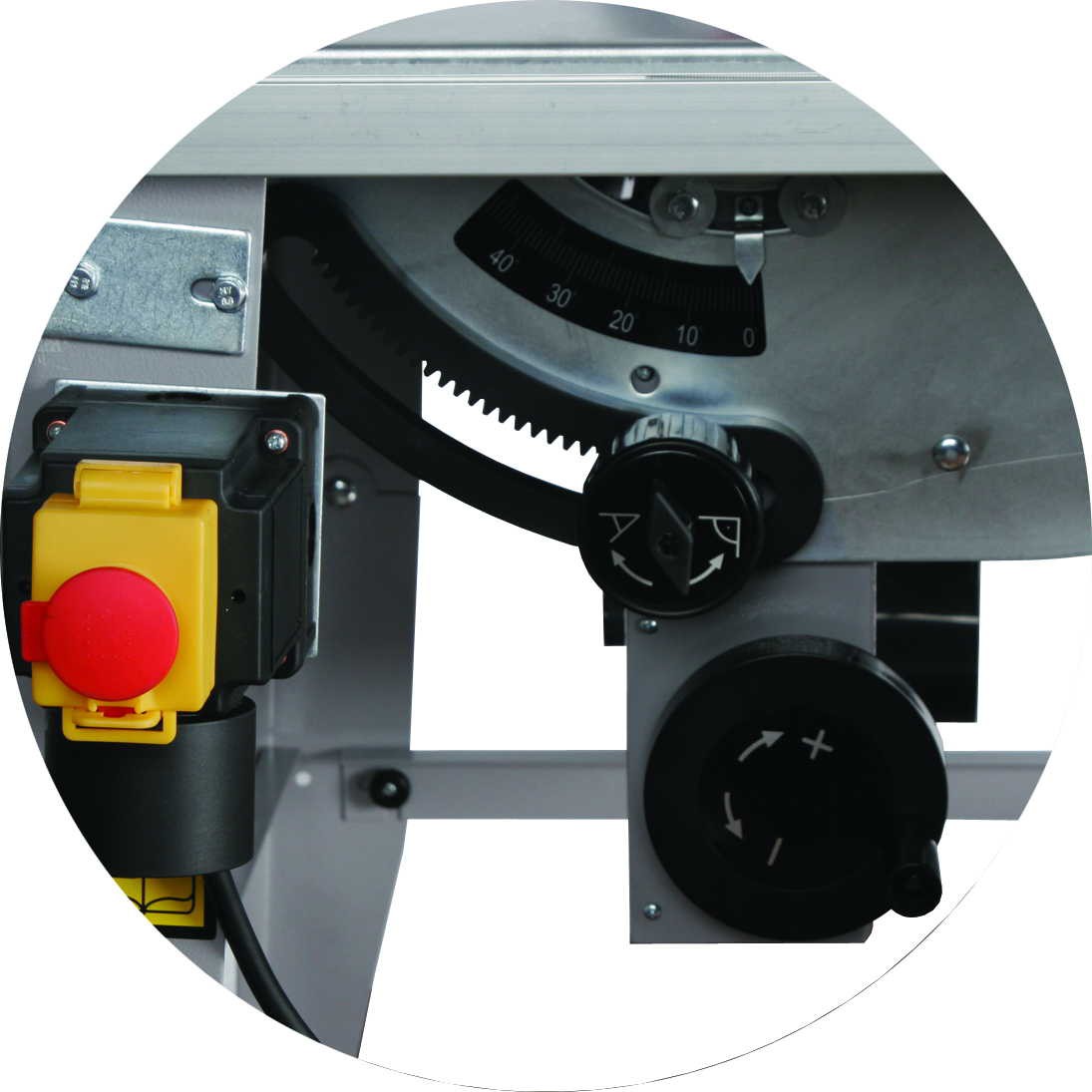

Safety - an integral part of the Macma Equipped with an electronic motor brake, the saw blade comes to a standstill with-in seconds.This tilt arbour rise and fall Sliding Table Saw is manufactured with a heavy gauge steel frame and galvanized top and side table that can be disassembled quickly and easily for cartage or storage. The Saw Bench also has folding legs contributing to its portability which like the side or end tables require no tools for their removal or replacement. Powered by a 3 HP single phase motor the 12” Tungsten Carbide saw blade supplied with this machine will cut 90mm depth at 90 degrees or 50mm at 45 degrees
Standard equipment

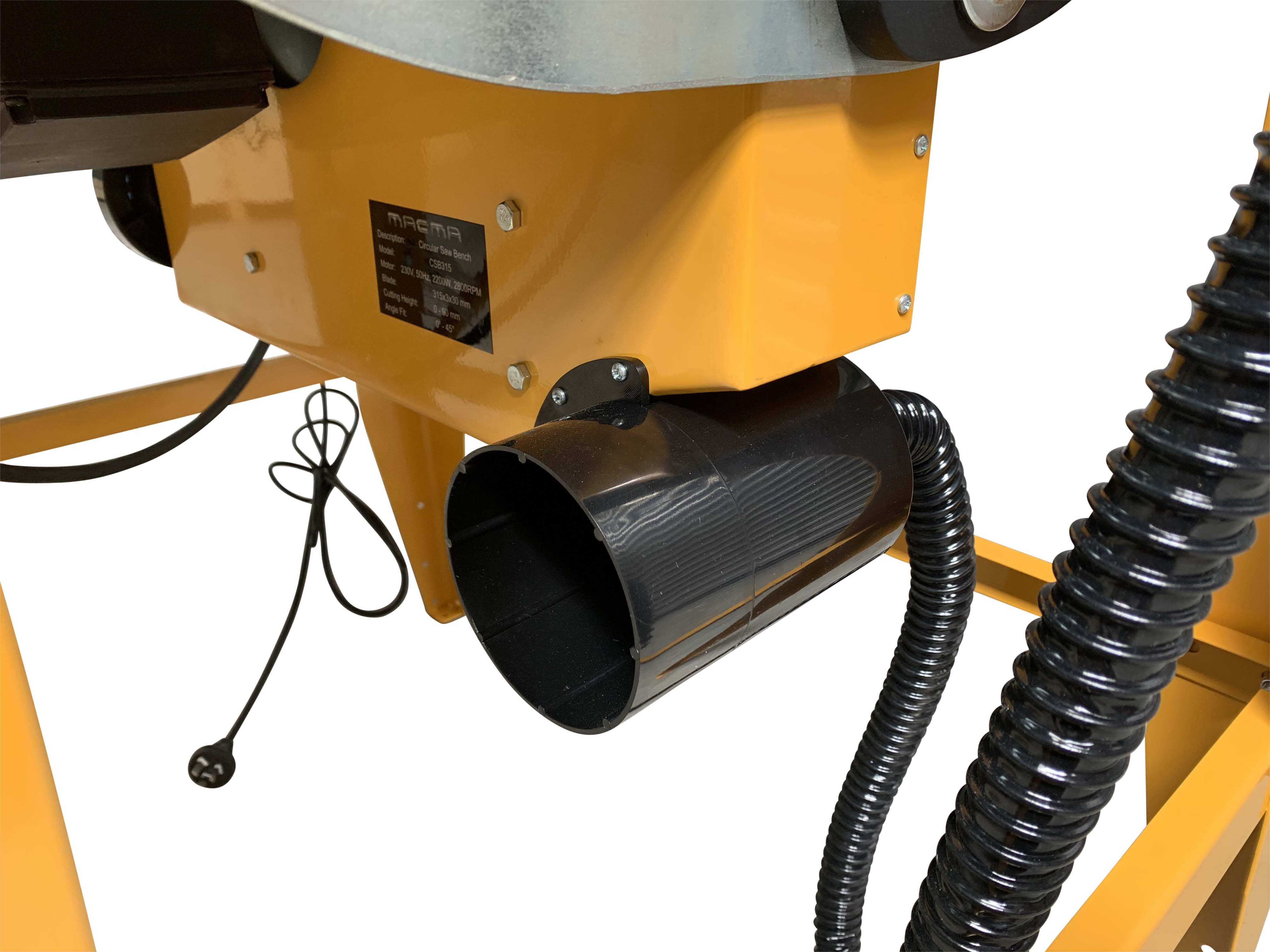

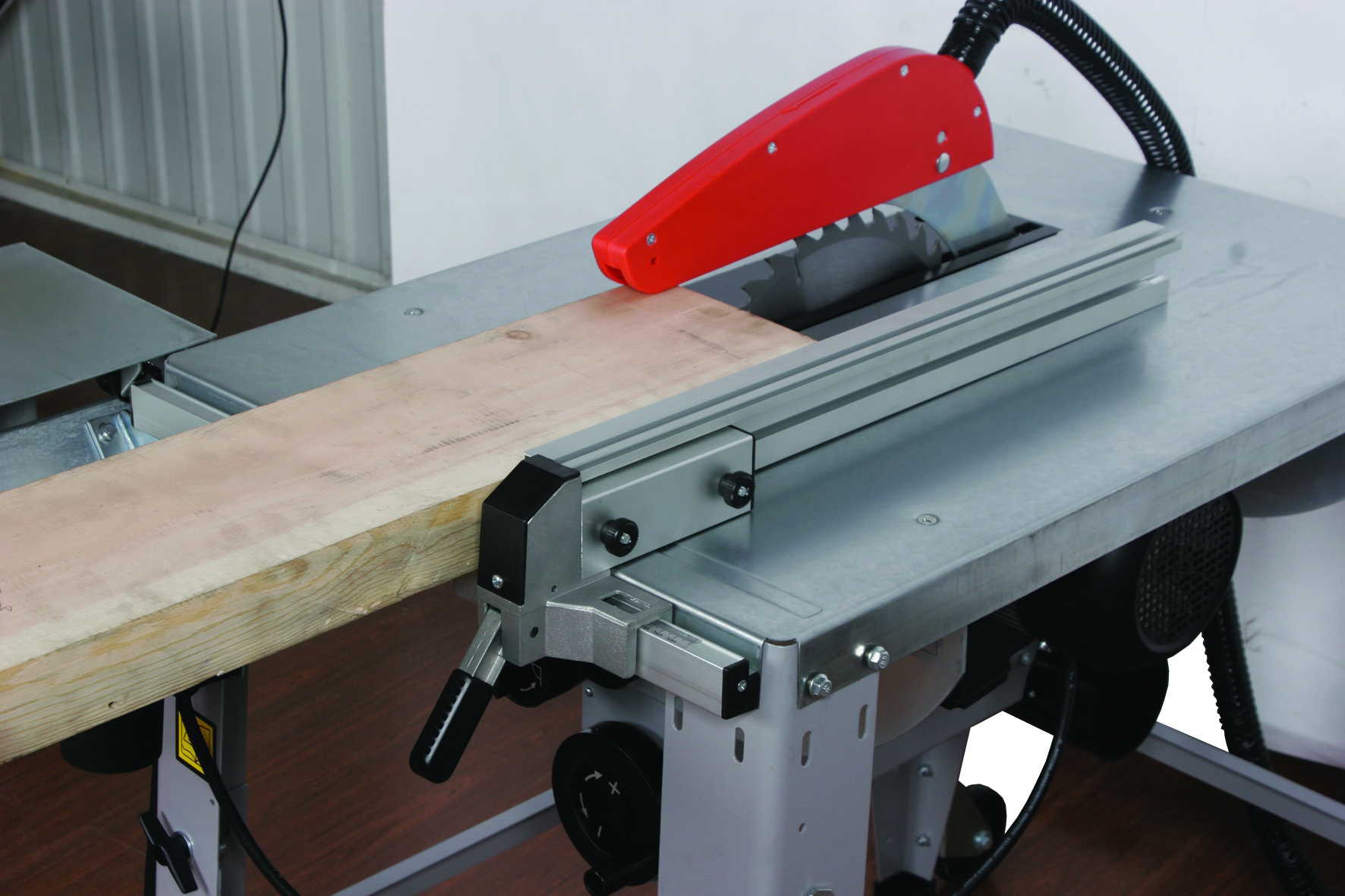

Ripping fence with fence rail, table insert, 1 x table extension Second Rear Table Optional Extra, extraction hood, Dust port, assembly tool, TCT saw-blade, hand-wheel R and F.
Optional Extras -Wheel/Handle Kit , Second Rear Extension Table.
SPECIFICATIONS:
Blade Diameter
| | 315mm |
| Motor | | 2.2kw(3Hp) x 240v x 1Ph x 2800 rpm
|
Table size
| | 550 x 800 mm
|
Ext Table size
| | 550 x 800 mm
|
Max. cut depth at 45 deg / 90 deg
| | 50mm / 90mm
|
| Working Height | | 860 mm
|
| Max Rip Capacity | | 780 mm |
NW/GW
| | 46/54 kg |
Downloads:
csb315 manual.pdf (PDF)

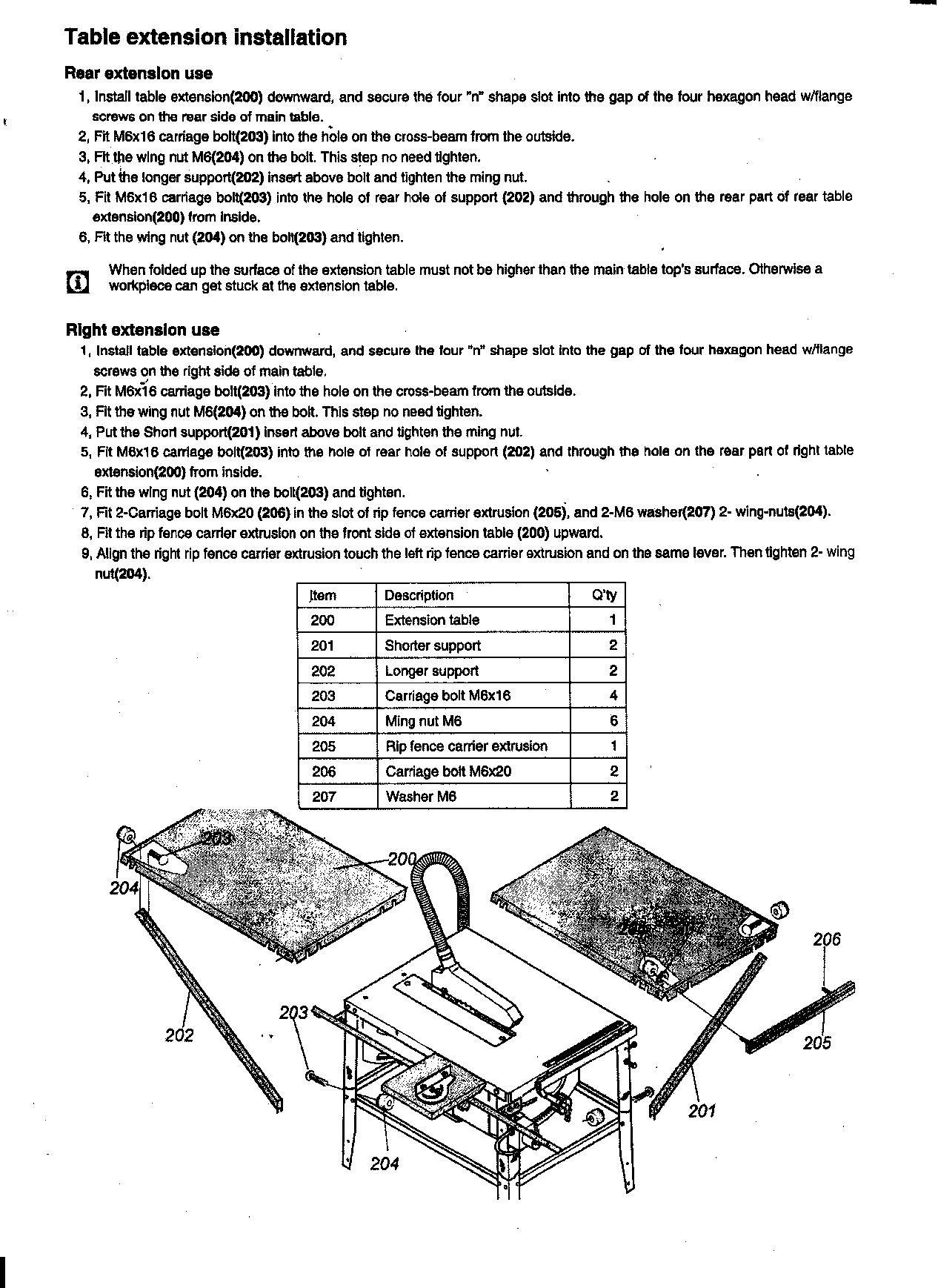

CSB315 ext table parts (PDF)
CSB315 fence detail.pdf (PDF)
